Description

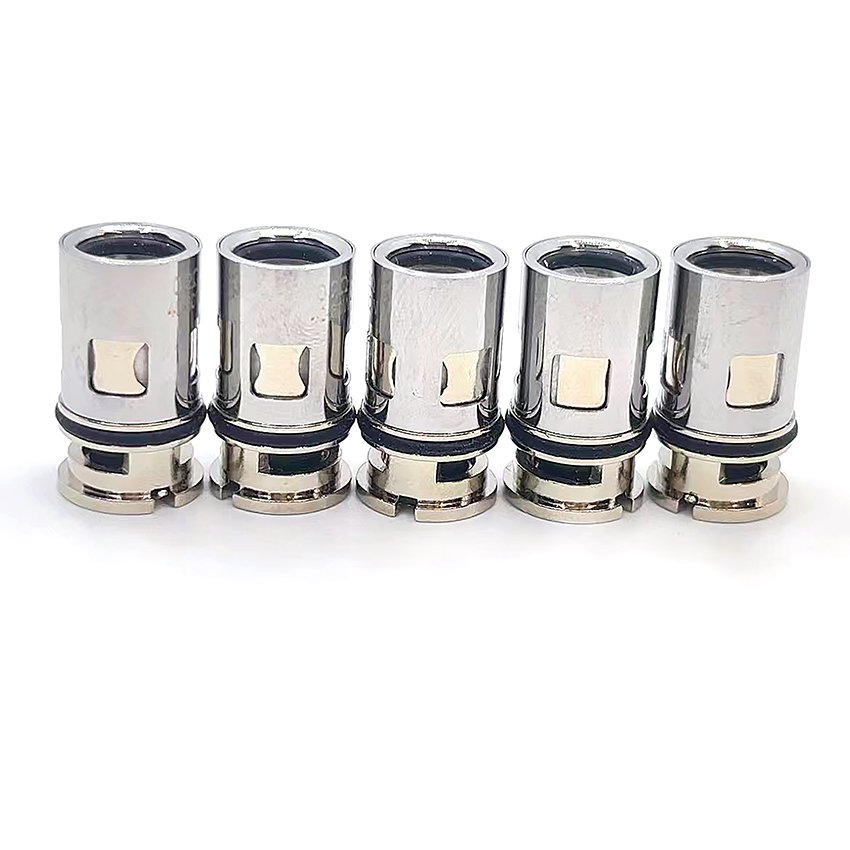

PnP Replacement Coils
PnP coils come with 17‑core types, ranging from a 0.15Ω mesh coil for heavy cloud‑chasing, down to a 1.2Ω MTL coil that delivers a tight, cigarette‑like draw. Select your coil according to your device’s wattage range and your vaping habits.
⚠️ Important Reminder: Before you order, confirm your device can reach the coil’s rated wattage. A coil running below its minimum wattage will produce weak vapor and burnt flavour, even if it is brand‑new.
Coil Options
| Core | Type | Resistance | Wattage Range | Vaping Style |
|---|---|---|---|---|
| VM6 | Mesh | 0.15Ω | 60‑80W | DL (Direct‑Lung) |
| TW15 | Mesh | 0.15Ω | 55‑70W | DL |
| VM5 | Mesh | 0.2Ω | 40‑60W | DL |
| TW20 | Mesh | 0.2Ω | 40‑55W | DL |
| VM1 | Mesh | 0.3Ω | 32‑40W | DL |
| TW30 | Mesh | 0.3Ω | 28‑36W | DL / RTL |
| VM3 | Mesh | 0.45Ω | 25‑35W | DL |
| VM4 | Mesh | 0.6Ω | Check tank manual | Half DL |
| TM1 | Regular | 0.6Ω | 20‑25W | Half DL |
| DW60 | Regular | 0.6Ω | 18‑23W | RDL |
| TM2 | Regular | 0.8Ω | 12‑18W | Half DL |
| R1 | Regular | 0.8Ω | 12‑18W | MTL (Mouth‑to‑Lung) |
| DW80 | Regular | 0.8Ω | 12‑16W | MTL |
| R2 | Regular | 1.0Ω | 10‑15W | MTL |
| TR1 | Regular | 1.2Ω | 10‑15W | MTL |
| VM2 | Regular | 1.2Ω | Check tank manual | MTL |
| RBA | Rebuildable | 0.25‑2.0Ω | Build‑your‑own | — |
Compatible Devices
Fits all VOOPOO devices that use the standard PnP‑series pod/tank:
Drag X, Drag S, Drag 4, Drag Max, Drag H40, Drag H80S, Drag E60, Drag Baby Trio, Vinci, Vinci R, Vinci X, Vinci X2, Vinci 2, Vinci 3, Argus 40W, Argus Air, Argus Pro 80W, UForce‑L Tank, V‑SUIT, PnP Pod Tank, Navi.
Frequently Asked Questions
Q: How do I know if I want DL or MTL? A: DL (Direct‑Lung) provides an open, airy draw, similar to breathing through a straw, suited for sub‑0.5Ω coils at higher wattage. MTL (Mouth‑to‑Lung) offers a tighter, cigarette‑style draw, best for coils of 0.8Ω and above, running at low‑medium wattage.
Q: Do I need to prime a new coil before using it? A: Yes. Drip a few drops of e‑liquid directly into the exposed wicking holes, then wait 5‑10 minutes before firing. Dry‑burning a brand‑new coil will instantly scorch the cotton wick.
Q: Is this a genuine VOOPOO coil? A: This is a compatible replacement head built to the same PNP specification, not a VOOPOO‑branded original. It is guaranteed to work with the pods listed above.
Sold as a single coil or 5‑pack.
For use by adults 21+.
